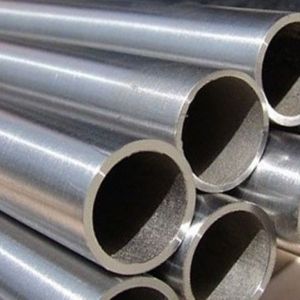

Home > Stainless Steel >Stainless Steel 316H EFW Pipes
For businesses and industries across Addis Ababa and Ethiopia seeking resilience in demanding environments, Bereket Pipes stands as a trusted local partner. As a leading manufacturer and supplier right here in the capital, we specialize in providing high-performance solutions like our Stainless Steel 316H EFW Pipes. We understand the specific challenges faced by local projects, which is why we are committed to supplying materials that offer superior strength and exceptional corrosion resistance, ensuring your operations run smoothly and efficiently, supported by reliable, homegrown expertise.
The composition of these pipes is carefully engineered for durability, featuring a higher carbon content than standard 316 stainless steel. This specific grade includes chromium, nickel, and molybdenum, which work together to provide outstanding resistance to a wide range of corrosive elements. This deliberate formulation directly enhances its mechanical properties, resulting in excellent tensile strength and superior creep resistance, meaning it can maintain its integrity under high temperatures and significant pressure over long periods, making it a robust choice for critical applications.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 316H | S31609 | 1.4401 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Tensile Strength | Yield Strength | Elongation |
| SS 316H | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316H EFW Pipes from Bereket Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Elastic Modulus (GPa) | Specific Heat 0-100°C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| 316H | 8000 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 193 | 500 | 740 |
We offer custom sizes for Stainless Steel 316H EFW Pipes to meet your specific needs. Our dedicated team at Bereket Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@bereketpipes.com.
You’ll find Stainless Steel 316H EFW Pipes commonly used in refineries, chemical and petrochemical plants, power generation facilities, and heat exchangers, thanks to their remarkable high-temperature performance and corrosion resistance. They’re also utilized in boilers, condensers, marine applications, and the food and beverage industry, where durability and hygiene are paramount. Furthermore, these pipes are ideal for structural and architectural projects, as well as water treatment systems that need to withstand thermal and mechanical stress. Their strength and long service life make them a go-to choice for challenging industrial environments.
