Home > Nickel Alloy > Nickel Alloy 201 Pipes
Operating from the heart of Addis Ababa, Bereket Pipes stands as a trusted partner for industrial and engineering projects across Ethiopia and beyond. We take pride in sourcing and supplying high-performance materials that meet the demanding needs of modern industry, with our Nickel Alloy 201 Pipes representing a cornerstone of our commitment to quality and reliability for clients who cannot afford to compromise on the integrity of their piping systems.
The strength of Nickel Alloy 201 lies in its composition, being a commercially pure nickel that offers exceptional resistance to corrosion. This material is engineered to perform reliably, boasting excellent mechanical properties including good ductility and a high tensile strength that allows it to withstand significant pressure and stress. It maintains these robust characteristics even when exposed to the intense heat of elevated temperatures, ensuring long-term structural stability in challenging environments.
| ASTM Specification | ASME SB-161, ASME SB-829, ASME SB-775, ASME SB-725 |
|---|---|
| Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| ASTM B161 Nickel 201 Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| DIN 17740 UNS N02200 Welded Pipe Size | 5.0 – 1219.2 mm |
| Nickel WERKSTOFF NR. 2.4066 EFW Pipe size | 5.0 – 1219.2 mm |
| Swg & Bwg | 12 Swg., 10 Swg., 16 Swg., 14 Swg., 20 Swg., 18 Swg., |
| BS 3075 201 Nickel Pipe Schedule | XS, SCH30, SCH40, XXS, SCH80, SCH120, SCH60, SCH140, STD, SCH10, SCH10S, SCH40S, SCH80, SCH20, SCH5, SCH160 |
| BS 3074 Nickel 201 pipe Length | Double Random, Single Random, Standard & Cut length Pipe |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |

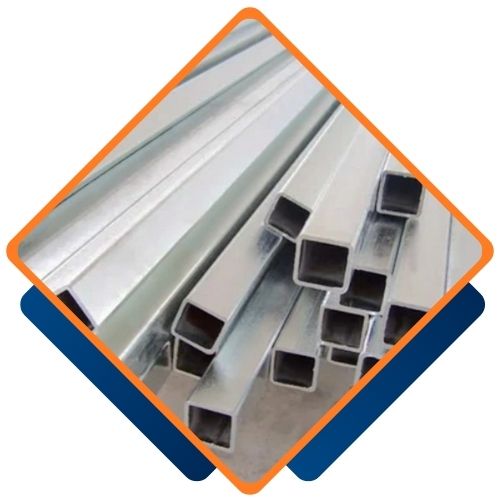

| Form | Nickel 201 are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |

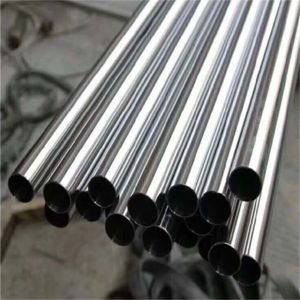

| Type of BS 3073 201 Alloy Pipe | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW nickel 201 |
| Nickel 201 pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
| Marking on ASME SB-725 Alloy 201 Pipe | All ASTM B161 Nickel 201 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application of BS 3076 Nickel 201 pipe | Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Specialize in | Large Diameter Nickel 201 pipe |
| NA11 DIN 17740 Nickel 201 pipe manufacturing Technique | Cold drawn, hot drawn, bright annealed, solid solution, hot extruding |
| Nickel 201 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| 99.0 min | 0.15 max | – | 0.35 max | 0.1 max | 0.4 max | – | 0.01 max | 0.25 max | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Nickel Alloy 201 Pipes from Bereket Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications. It delivers reliability and performance in challenging environments while maintaining competitive pricing.
Bereket Pipes and Tubes, one of the largest suppliers of Nickel Alloy 201 Pipes in Addis Ababa, Ethiopia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for nickel alloy products in the region.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Nickel 201 | N02201 | 2.4066 | N-100M | Ni 99.2 | NW 2201 | NA 11 | НП-2 |
Yes, we offer custom sizes for Nickel Alloy 201 Pipes to meet your specific requirements. Our team at Bereket Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@bereketpipes.com.
| ASTM B161 Nickel 201 Pipe OD mm | Pipe WT mm | in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Nickel Alloy 201 Pipes are widely utilized in the chemical and petrochemical sectors for managing caustic soda, alkalis, and other corrosive solutions. They also play a vital role in marine environments, food processing, synthetic fiber production, and salt manufacturing. Additionally, these pipes are perfect for heat exchangers, pressure vessels, and piping systems that operate at elevated temperatures, where oxidation and corrosion resistance are critical. The blend of chemical resistance, mechanical strength, and thermal stability makes Nickel Alloy 201 Pipes a go-to choice for essential industrial applications.
